Property	Value
Colors	Red
Manufacturing Methods	Extruded
Plant	Plant 2
Series (Pavers)	Permeable
Sizes	Jumbo Permeable Paver
Textures	Wire Cut
Types	Paver
BRICK TEST RESULTS	https://www.beldenbrick.com/resources/brick-test-results

Product Details

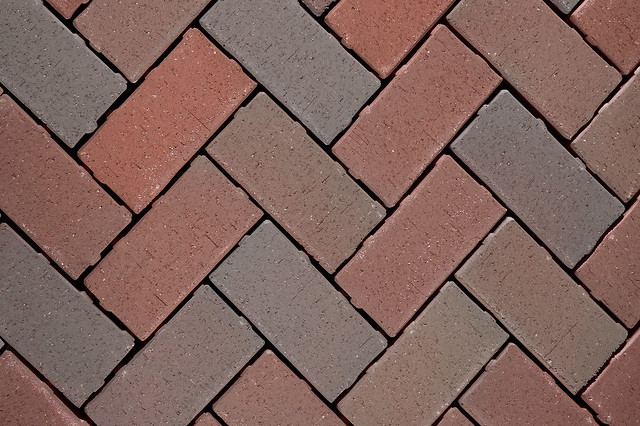

Regimental Full Range Permeable Pavers
